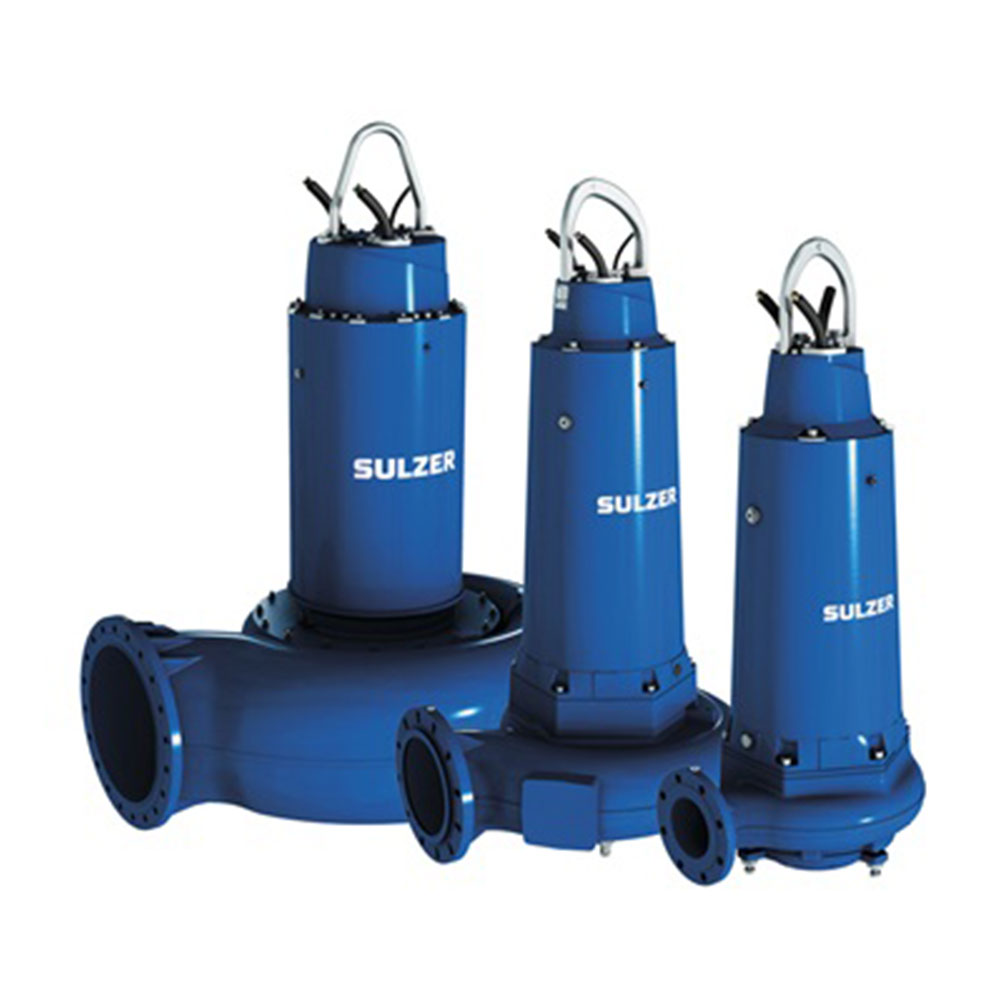

APPLICATIONS

• Clean water and wastewater
• Sewage containing solids and fibrous material
• Sewage with sludge and high rag content
• Industrial raw water
• Municipal combined sewage and storm water systems
• Hazardous locations (see details in the product documentation)

TECHNICAL DATA

• Flow max: 8,640 m3/h
• Motor range: 50 Hz, 1.3 - 350 kW 60 Hz, 2 - 400 kW
• Premium Efficiency Motor IE3
• Impeller Design: ContraBlock / Side Channel / Vortex
• Solid Passage: 75 mm and above

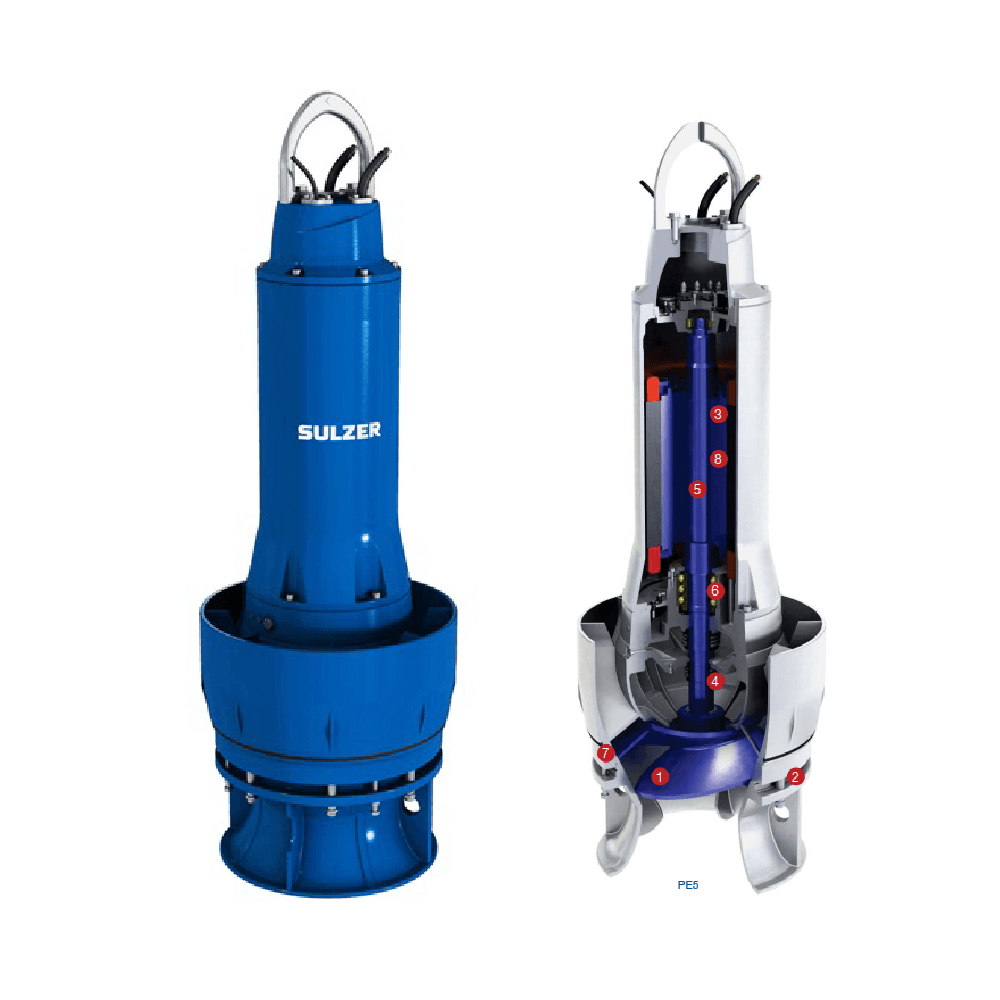

APPLICATIONS

• Storm water protection, irrigation and aquaculture
• Screened wastewater from commercial and industrial sources
• Combined sewage and surface water
• Return sludge or return activated sludge (RAS)
• Wet wells, submerged with automatic coupling system

TECHNICAL DATA

• Capacities: up to 7,000 l/s (50 Hz) / up to 8,500 l/s (134,700 USgpm) (60 Hz)
• Heads up to 10 m (50 Hz) / up to 10 m (33 ft) (60 Hz)
• Motor power 7.5 to 650 kW (50 Hz) / 9 to 750 kW (12 to 1,005 hp) (60Hz)
• Premium Efficiency Motor IE3
• Discharge sizes: DN 600 to DN 1400
• Pipe diameters: 600 to 1,400 mm (50 Hz) / 600 to 1,400 mm (23 to 55 in) (60 Hz)

APPLICATIONS

• Water
• Storm water
• Land drainage
• Flood protection
• Wastewater from commercial and industrial sources
• Sewage containing solids

TECHNICAL DATA

• Capacities: up to up to 3,100 l/s (50 Hz) / up to 3,100 l/s (up to 49,000 USgpm) (60 Hz)
• Heads up to 35 m (50 Hz) / up to 33 m (108 ft) (60 Hz))
• Motor power 7.5 to 650 kW (50 Hz) / 9 to 750 kW (12 to 1,005 hp) (60 Hz)
• Premium Efficiency Motor IE3
• Discharge sizes: DN 600 to DN 1200

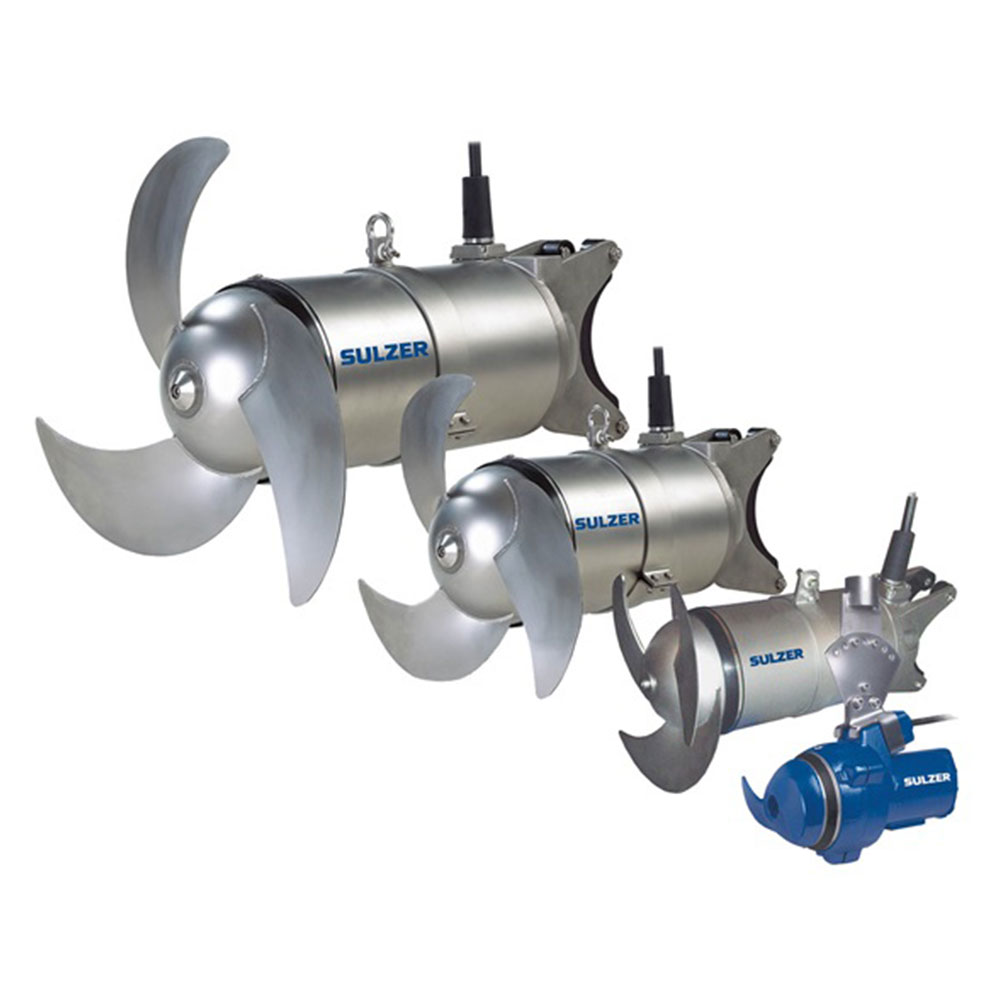

APPLICATIONS

• Mixing and stirring applications in sewage treatment plants and industrial areas
• Homogenization of highly-concentrated sludge and slurries
• Hazardous locations ATEX (Ex II 2G k Ex d IIB T4), FM and CSA available as an option

TECHNICAL DATA

• Mixing flow max: 1.75 m3/s
• Motor range: 0.8 to 25 kW
• Propeller diameter: 210 - 900 mm

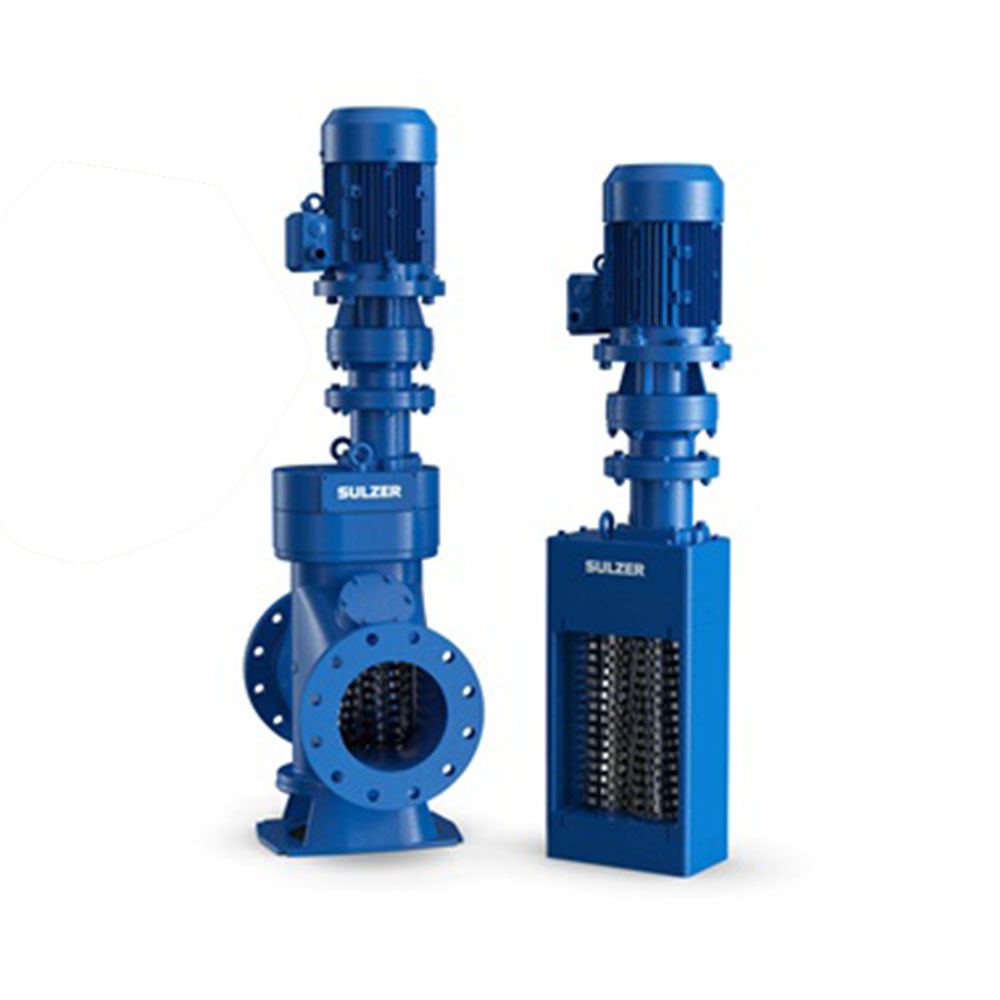

APPLICATIONS

The Muffin Monster™ sewage grinders are designed to protect pumps and other equipment by grinding down the toughest wastewater solids. Available in three different models each with two different configurations, they are suitable for applications such as:

• Pump stations
• Sludge processing
• Correctional facilities
• Headworks – primary treatment
• Septage/Grease receiving

TECHNICAL DATA

• Hex shafts: 50 mm
• Motor: Standard 1.5 – 7,5 kW; 25-35 :1 reducer
• Cutter size: 120 – 190 mm diameter
• Seal max working pressure: 10.3 bar

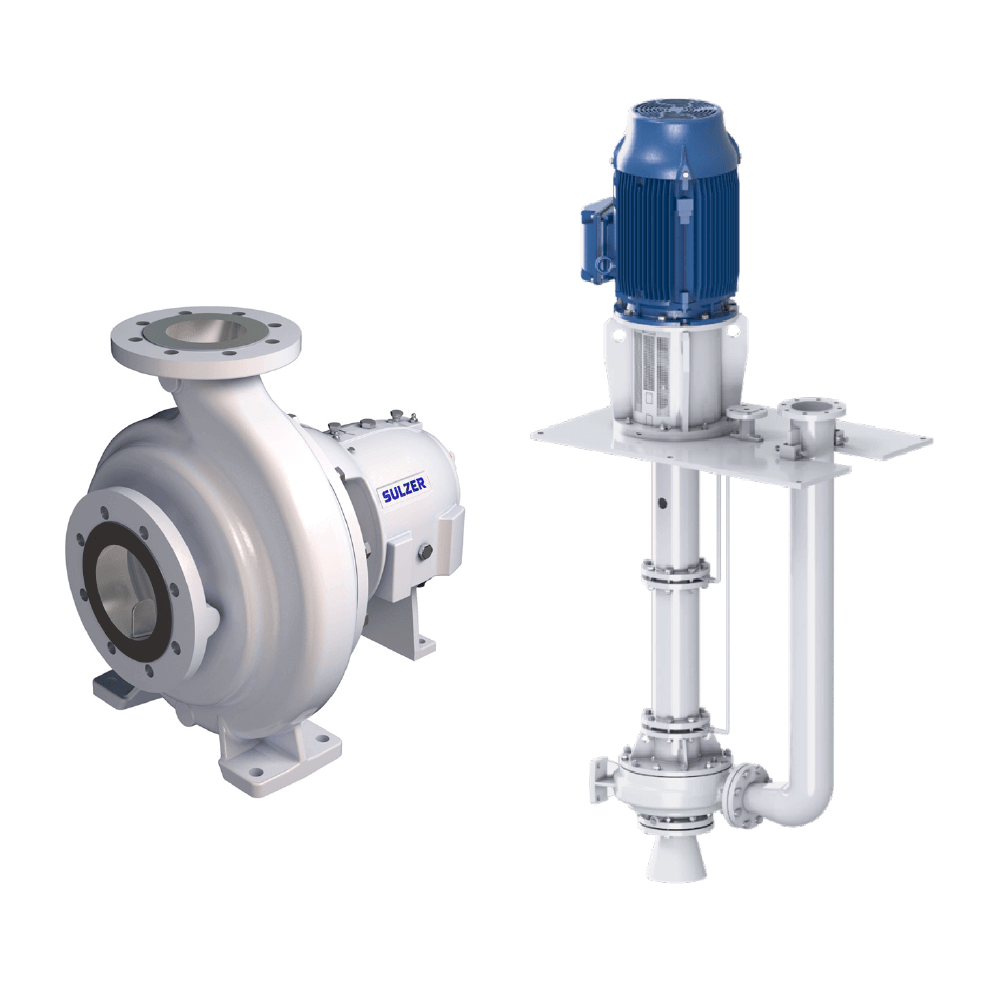

APPLICATIONS

• Clean and lightly contaminated liquids
• Viscous liquids
• Fibrous slurries
• Large solids containing liquids
• Gas containing liquids and self-priming application

TECHNICAL DATA

• Capacity: max. 9,000 m³/hr
• Head: max. 160m
• Pressures: up to 15 / 25 bar, 230 / 360 psi, depending on material and size
• Temperature: max. 180°C

APPLICATIONS

• Chemical Processing
• Food Processing
• Handling explosive fluids
• Handle solids of any appreciable size
• Paints industry
• Utilities

TECHNICAL DATA

• Capacity: max. 59 m³/hr
• Pressure: max. 10 bar
• Viscosity: 55,000 cSt
• Temperature: 150°C
• Cleaning In Process Capability (CIP)
• Comply with EHEDG, 3A, FDA Standard

APPLICATIONS

• General water pumping
• Spray and injection water
• Cooling tower circulation
• Irrigation and drainage for agriculture
• Service Pumps

• Capacity: max. 30,000 m³/hr
• Head: max. 300  m
• Temperature: 95°C
• Open (propeller), semi-open (mixed flow)  & closed (Vertical Turbine)
